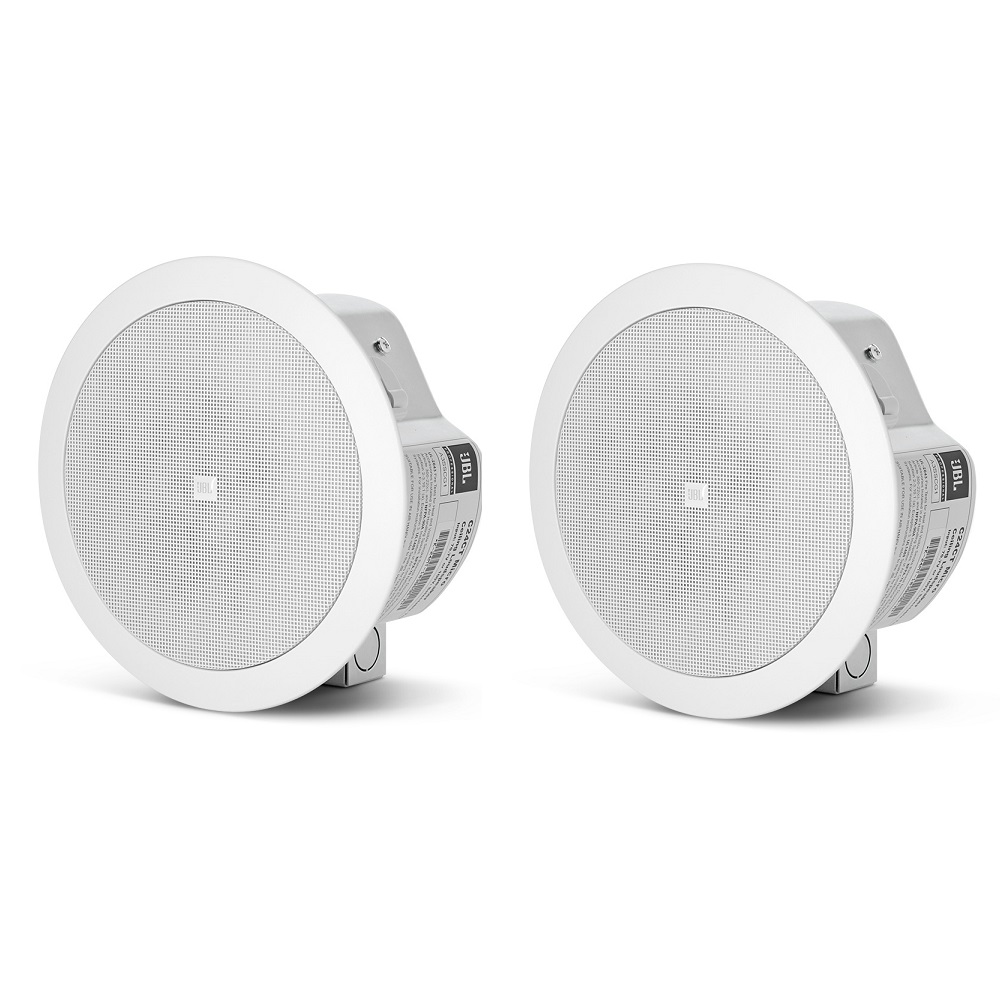

JBL Professional Control 24C Micro – Background Music Ceiling Loudspeaker (Pair B-Stock)

Description JBL Professional Control 24C Micro The JBL Professional Control 24C Micro is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems. Features: Extremely wide 150°coverage. Smooth frequency response. Components: 4.5 in (115 mm) woofer, injection molded graphite cone with butyl rubber surround. .5 in (12 mm) polycarbonate tweeter for extended response. Control 24C Micro is 8 ohms and handles 15 W. Shallow 4 in (100 mm) depth. Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking. Specifications: Frequency Range 85 Hz – 25 kHz Power Rating IEC System Long-Term Ratings (low-Z direct): 30 Watts Continuous Program Power 15 Watts Continuous Pink Noise (60W peak), 100 hrs Sensitivity (1W, 1m) 86 dB (100 Hz – 10 kHz) Crossover Frequency 3.5 kHz Maximum SPL (1m) 98 dB (104 dB peak) Coverage Angle 150° conical Impedance 7.1 ohms Input Connectors Screw-down terminals. Drivers LF Driver: 115 mm (4.5 in) HF Driver: 12 mm (0.5 in) Color White Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. Backcan formed steel (included “blind-mount”) Baffle/Rim Medium impact polystyrene, fire rated UL94V-O Ceiling Cutout Size 167 mm (6.6 in) diameter (cardboard cutout template included) Included Accessories C-shaped support backing plate 2 tile support rails (fits both 2 ft and 600 mm tiles) Cutout template, cardboard Optional Accessories MTC-24TR trim ring for retrofit installations MTC-24NC optional new construction bracket, flat MTC-24MR optional mud ring construction bracket Plenum Usage Yes, backcan included
